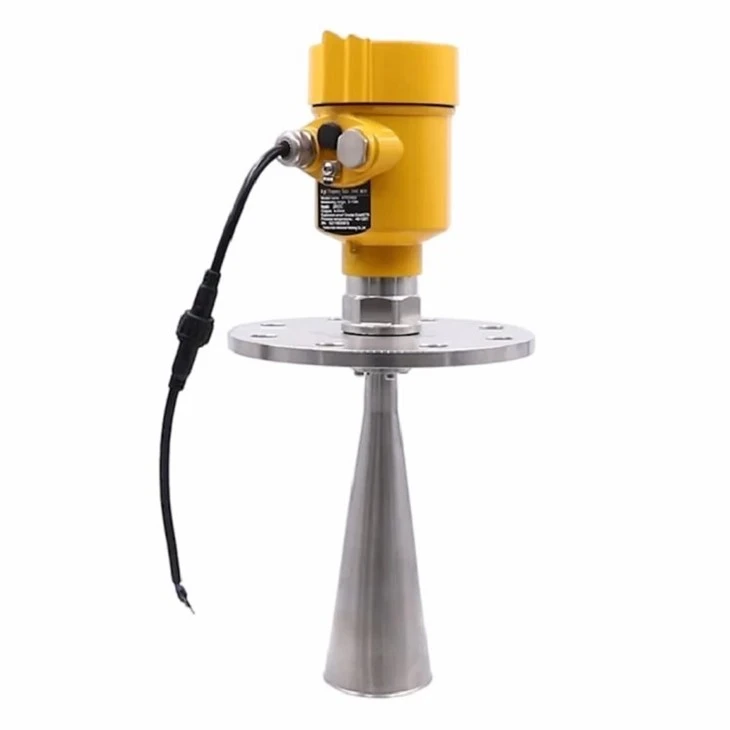

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Datum measurement: Screw thread bottom or the sealing surface of the flange.
Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).
The characteristics of 26G radar level meter:
►Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
►Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
►Serious dust environment on the high level meter work has little effect.
►A shorter wavelength, the reflection of solid surface inclination is better.
►Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
►The measuring range is smaller, for a measurement will yield good results.
►High signal-to-noise ratio, the level fluctuation state can obtain better performance.
►High frequency, measurement of solid and low dielectric constant of the best choice.
Product Introduction
HYRD901
Application： All kinds of corrosive liquid
Measuring Range：10 meters
Process Connection： Thread, Flange
Process Temperature： -40℃~130℃
Process Pressure： -0.1~0.3 MPa
Accuracy： ± 5mm
Protection Grade： IP67
Frequency Range： 26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V）
Signal Output：4... 20mA /HART （2-wire / 4-wire）
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
HYRD902
Application：Slightly corrosive liquid
Measuring Range：30 meters
Process Connection：Thread, Flange
Process Temperature：-40℃~130℃(Standard type) -40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 4.0 MPa
Accuracy： ± 3mm
Protection Grade：IP67
Frequency Range： 26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V）
Signal Output：4... 20mA /HART（2-wire / 4-wire）
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
HYRD902T
Application：Corrosive liquids, vapors, volatile liquids
Application：Corrosive liquids, vapors, volatile liquids
Measuring Range：20 meters
Process Connection：Flange
Process Temperature：-40℃~130℃(Standard type) -40℃~230℃(High temperature type)
Process Pressure：-0.1~2.0 MPa
Protection Grade： IP67
Accuracy： ±3mm
Frequency Range：26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V ）
Signal Output：4... 20mA /HART（2-wire / 4-wire）
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
HYRD903
Application：Solid material, Strong dust easy to crystallize, condensation occasion
Measuring Range： 70 meters
Process Connection：Universal Flange
Process Temperature：-40℃~130℃(Standard type) -40℃~230℃(High temperature type)
Process Pressure：-0.1~4.0 MPa (Flat flange) -0.1~0.3MPa (Universal flange)
Protection Grade： IP67
Accuracy： ±15mm
Frequency Range：26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V）
Signal Output：4... 20mA /HART （2-wire / 4-wire）
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
HYRD904
Application：Solid material, Strong dust, easy to crystallize, condensation occasion
Measuring Range：80 meters
Process Connection：Thread, Universal Flange
Process Temperature：-40℃~130℃(Standard type) -40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 0.3 MPa
Measurement Accuracy： ±15mm
Protection Grade：IP67
Frequency Range： 26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V） Signal Output：4... 20mA / HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：ExiaⅡC T6 Ga /Exd ⅡC T6 Gb
HYRD905
Application：Solid particles, Powder
Measuring Range：30 meters
Process Connection：Thread, Flange
Process Temperature：-40℃~130℃(Standard type) -40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 4.0 MPa (Flat flange) -0.1 ~ 0.3 MPa (Universal Flange)
Accuracy：±15mm
Protection Grade：IP67
Frequency Range：26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V）
Signal Output：4... 20mA /HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga /Exd ⅡC T6 Gb
HYRD906
Application：Hygienic liquid storage, Corrosive container
Measuring Range：20 meters
Process Connection：Flange
Medium Temperature：-40℃~100℃
Process Pressure：-0.1~1.6 MPa
Accuracy：± 3mm
Protection Grade：IP67
Frequency Range：26GHz
Supply：2-wire（DC24V）/ 4-wire（DC24V /AC220V）
Signal Output：4... 20mA/HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga /Exd ⅡC T6 Gb
The Installation Requirements
The Electrical Connection
The power supply voltage:
(4~20)mA/HART (Two wire system) : The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.
(4~20)mA/HART(Four wire system) : Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data.
RS485 / Modbus: Power supply and Modbus signal line separated respectively using a two-core shielded cable, the power supply voltage range see technical data.
Connection mode:
Structure Size (Unit: mm)
The outer shell:
Appearance size:
HYRD901
HYRD902
HYRD903
HYRD904
HYRD905
HYRD906
Flange type:
Technical Parameters
Product Model Selection
HYRD901
HYRD902
HYRD902T
HYRD903
HYRD904
HYRD905
HYRD906
