HY-502 tuning fork level sensor is applicable for fixed point alarm or control in all kinds of storage level and liquid level in tank. Solid material: rice, milk powder, sugar, salt, washing powder, dyestuff, cement, rock powder, plastic grain etc. liquid media: water, mud fluid, pulp, dyestuff, oil, milk, alcohol, beverage etc. and it can detect sediment in liquid! The instrument has not a movable part and presents merits of anti-corrosion, high sensitivity and easy mounting etc.
Specifications:
|
Medium |
Liquid,Podwer |
|
Accuracy |
±5 mm |
|
Repeatability |
±3 mm |
|
Measuring Range |
100~3000mm |
|
Temperature Range |
-40~180℃ |
|
Pressure Range |
-100kPa~3MPa |
|
Power Supply |
24VDC/220VAC |
|
Rate |
1W |
|
Max Load |
8A |
|
Output Signal |
DPDT |
|
Material: |
|
|
Enclosure |
Aluminum alloy |
|
Sensor |
SS316L |
|
Process connection |
SS304 |
|
Electrical Connection |
M20X1.5, 3/4”NPT |
|
Ingress Protection Rating |
IP67 |
|
Weight(standard) |
1.2kgs |

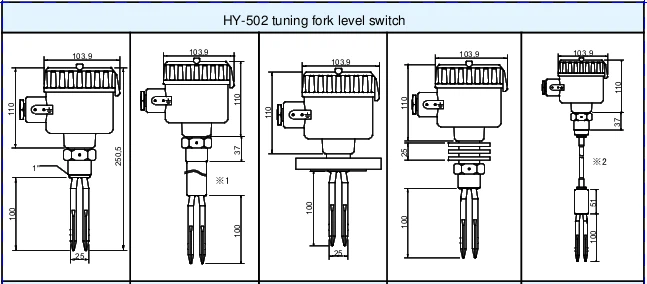

Size:

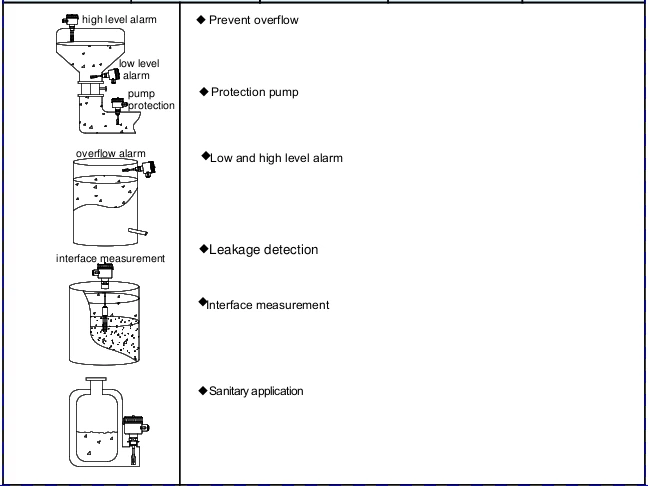

Applications:

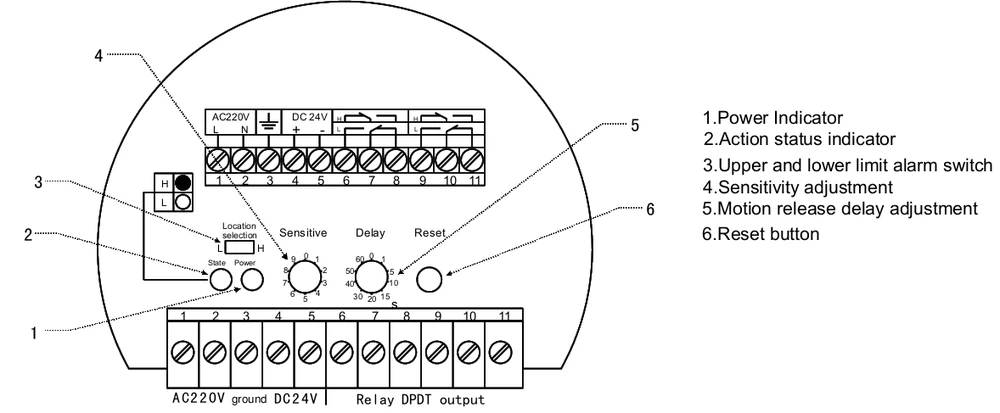

Wire Diagram:
Order Sheet:
|
HY-502--- |
||||||||
|
Type |
A |
|
Normal type |
|||||
|
B |
|
High temperature type |
||||||
|
C |
|
Sanitary type |
||||||
|
Insertion Length |
01 |
|
100mm |
|||||
|
02 |
|
100~3000mm |
||||||
|
03 |
|
1~100mter (cable type) |
||||||
|
Power Supply |
A |
|
220VAC |
|||||
|
D |
|
24VDC |
||||||
|
Fork Material |
1 |
SS304 |
||||||
|
2 |
SS316 |
|||||||
|
3 |
Others |
|||||||
|
Process Connection |
G |
G1” thread |
||||||
|
N |
1” NPT thread |
|||||||
|
F |
Flange |
|||||||
|
T |
Others |
|||||||
|
Explore Proof |
D |
ExdIICT6 |
||||||
|
N |
Without |
|||||||
