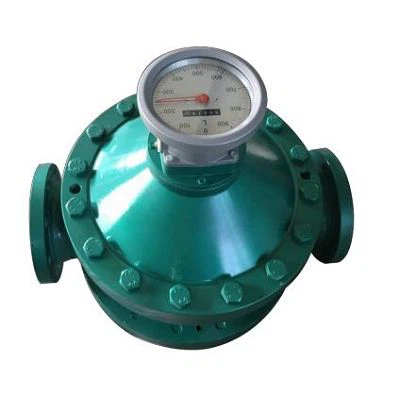

Basic type of pointer
Pointer reset type
Pointer reset type
Basic type of pointer

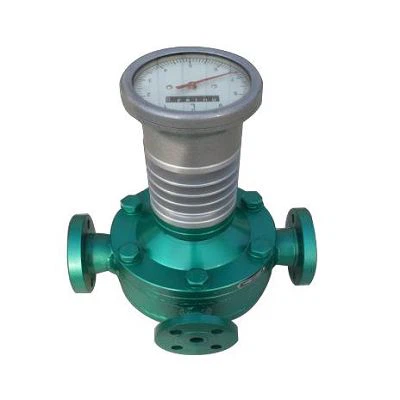

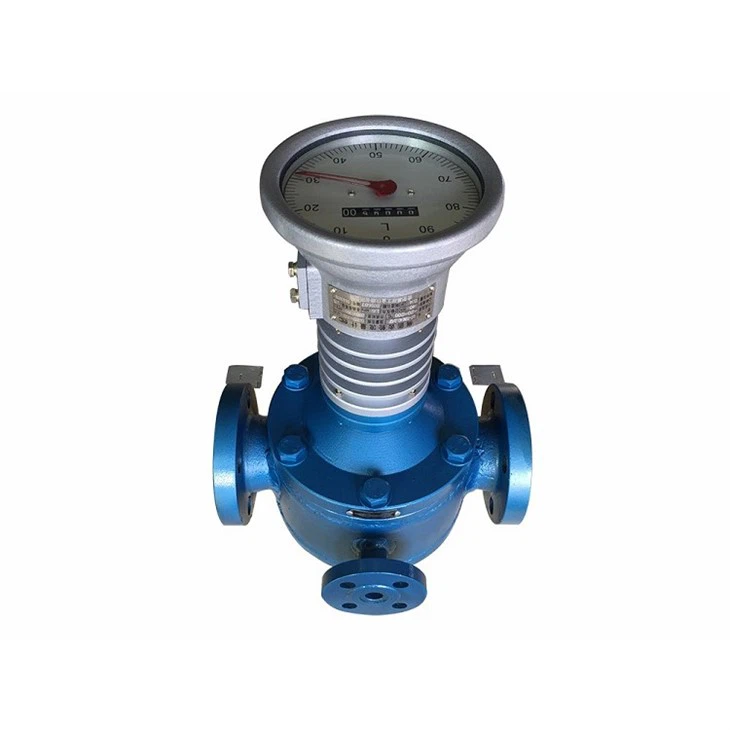

Clamping high temperature pointer

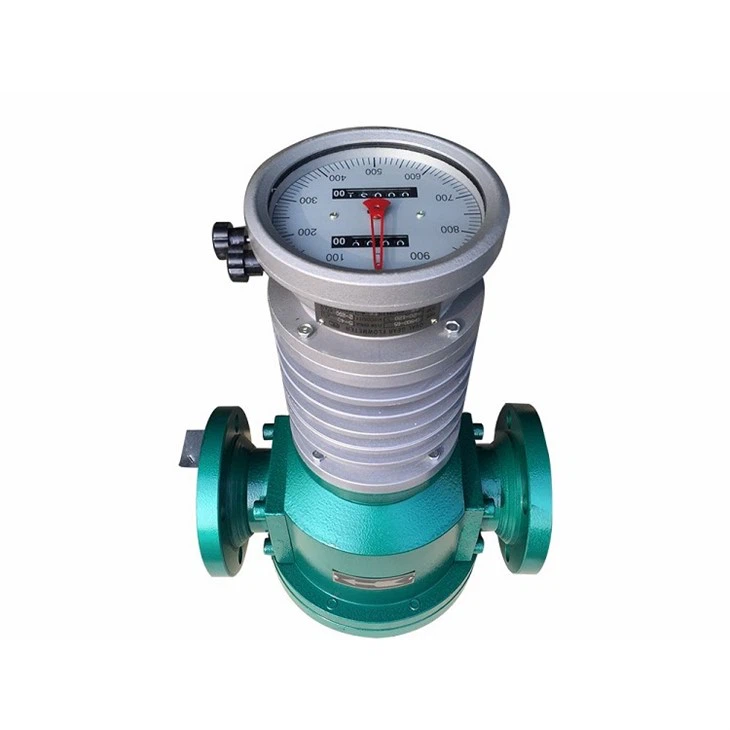

High temperature pointer reset type

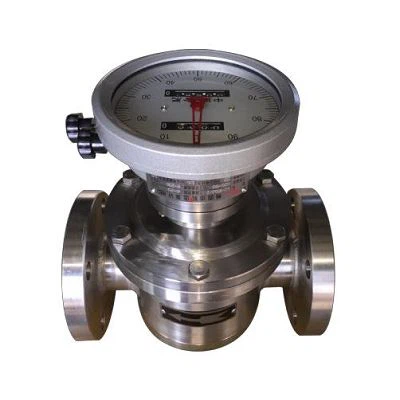

Stainless steel pointer reset type

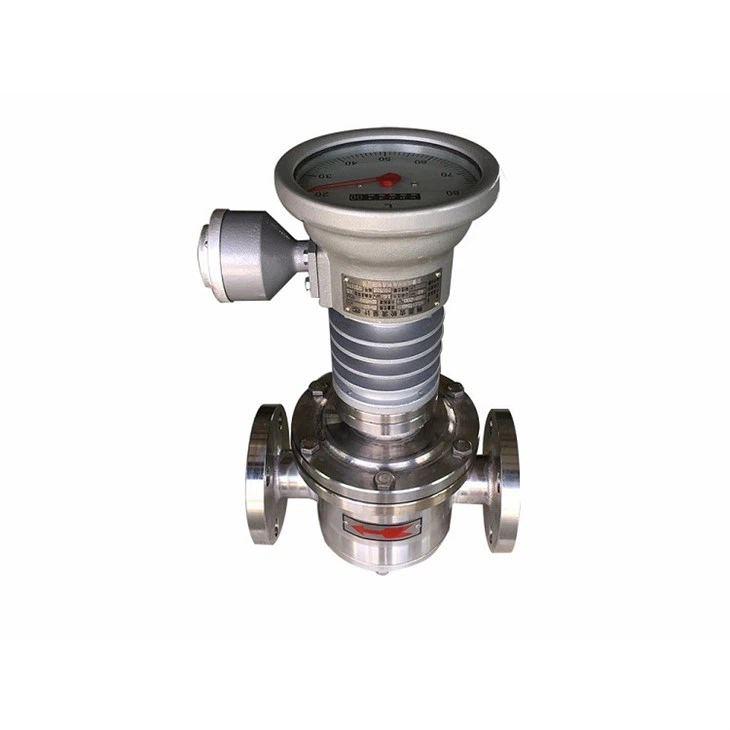

Stainless steel high temperature pointer output type

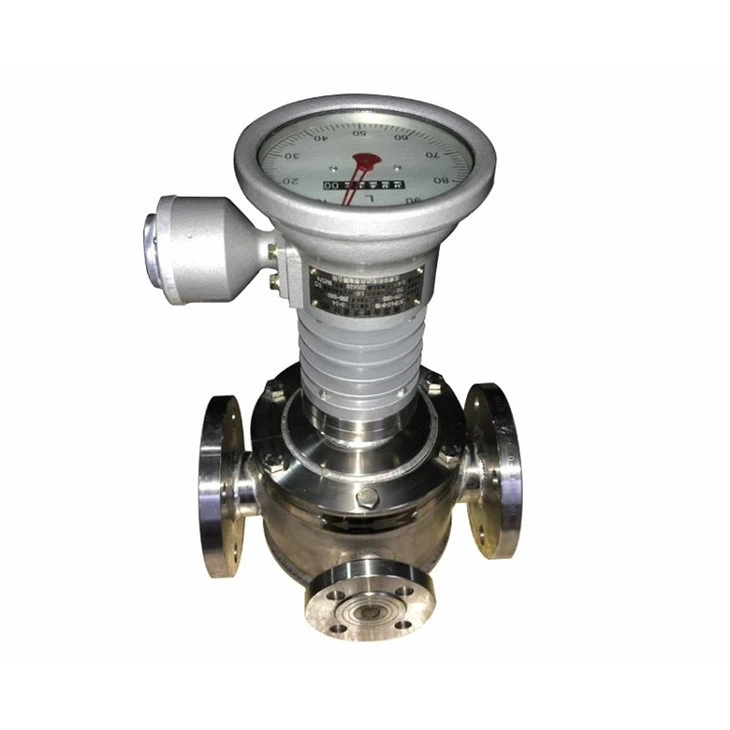

Stainless steel jacket high temperature output type
LCD Output Type（Output only 4-20mA）
Stainless steel liquid crystal explosion proof type
Liquid crystal explosion proof type
Overview
Oval gear flowmeter is a volumetric meter for continuous or intermittent measurement and control of liquid flow in a pipeline. It has many advantages, such as large range, high accuracy, small pressure loss, strong viscosity adaptability, measurement of high temperature and high viscosity liquid, convenient calibration, installation suggestion and so on. It is suitable for flow measurement in petroleum, chemical, chemical fiber, transportation, commerce, food, medicine and health departments.
Functions and codes of various functions
|
Counter Function |
A1 |
A |
Z |
13 |
J1 |
ELZ |
|
Pointer Cumulative six rollers |
● |
● |
|
|
|
|
|
Pointer Cumulative six rollers Reset |
● |
● |
● |
|
|
|
|
Pointer With message |
● |
|
|
|
● |
|
|
Single message (signal output) |
|
|
|
● |
|
|
|
LCD display (Instantaneous, cumulative, 4—20mA, pulse, RS485) |
|
|
|
|
|
● |
Model and material of main parts
|
Name |
Iron casting type |
Cast steel type |
High-tem perature iron casting type |
High-tem perature cast steel type |
High-vis cosity iron casting type |
High-visc osity cast steel type |
Stainless steel |
13 |
|
Model |
LC—A |
LC—E |
LC—TA |
LC—TE |
LC—NA |
LC—NE |
LC—B |
LC—13 |
|
Body material |
Iron casting |
Cast steel |
Iron casting |
Cast steel |
Iron casting |
Cast steel |
Stainless steel |
Various materials |
|
Gear material |
Iron casting |
Iron casting |
Iron casting |
Iron casting |
Iron casting |
Iron casting |
Stainless steel |
Various materials |
Technical Parameters
Oval gear flowmeter of iron casting type, cast steel type and stainless steel type
|
M TR |
LC—A Iron casting type |
LC—B Stainless steel type |
LC—E Cast steel type |
|
|
Nominal pressure MPa |
1.6 |
1.6, 2.5, 4.0, 6.3 |
1.6, 2.5, 4.0, 6.3 |
|
|
Temperature range ℃ |
Conventional pointer type: -20~+80；High-temperature pointer type: -20~+200； Conventional LCD type: -20~+60；High-temperature LCD type: -20~+150； |
|||
|
Precision level |
0.5% |
|||
|
Caliber (mm) |
Viscosity: 0.6—2mPa.s |
Viscosity: 2—200mPa.s |
||
|
10 |
0.2-0.4 m3/h |
0.08—0.4 m3/h |
||
|
15 |
0.6-1.5 m3/h |
0.3—1.5 m3/h |
||
|
20 |
0.8—3 m3/h |
0.6—3 m3/h |
||
|
25 |
1.2—6 m3/h |
0.8—6 m3/h |
||
|
40 |
5—15 m3/h |
3—15 m3/h |
||
|
50 |
6—24 m3/h |
4—24 m3/h |
||
|
65 |
10—40 m3/h |
8—40 m3/h |
||
|
80 (light type) |
10—40 m3/h |
8—40 m3/h |
||
|
80 (heavy type) |
15—60 m3/h |
10—60 m3/h |
||
|
100 |
30—100 m3/h |
15—100 m3/h |
||
|
150 |
45—190 m3/h |
34—190 m3/h |
||
|
200 |
68—340 m3/h |
m3/h |
||
Oval gear flowmeter of high viscosity type
|
M TR |
LC—NA High-viscosity iron casting type |
LC—NE High-viscosity cast steel type |
LC-NB High-viscosity stainless steel type |
|
|
NominalpressureMPa |
1.6 |
1.6、2.5、4.0、6.3 |
1.6、2.5、4.0、6.3 |
|
|
Temperature range ℃ |
Conventional pointer type: -20~+80；High-temperature pointer type: -20~+200； Conventional LCD type: -20~+60；High-temperature LCD type: -20~+150； |
|||
|
Precision level |
0.5% |
|||
|
Flow range m3/h |
||||
|
Caliber (mm) |
Viscosity: 200—1000mPa.s |
Viscosity: 1000-2000mPa.s |
||
|
10 |
0.04—0.3 m3/h |
0.03-0.2 m3/h |
||
|
15 |
0.2—1.0 m3/h |
0.1-0.7 m3/h |
||
|
20 |
0.4—2.1 m3/h |
0.25-1.5 m3/h |
||
|
25 |
0.6-4.2 m3/h |
0.6-3 m3/h |
||
|
40 |
2.1—10.5 m3/h |
1.0-7.5 m3/h |
||
|
50 |
2.4-16.8 m3/h |
2-12 m3/h |
||
|
65 |
6-28 m3/h |
4-20 m3/h |
||
|
80 (light type) |
6-28 m3/h |
4-20 m3/h |
||
|
80 (heavy type) |
8-42 m3/h |
6-30 m3/h |
||
|
100 |
10-70 m3/h |
10-50 m3/h |
||
|
150 |
27-133 m3/h |
19-95 m3/h |
||
|
200 |
48-238 m3/h |
34-170 m3/h |
||
High-precision oval gear flowmeter (precision: 0.2%)
|
M TR |
LC—A Iron casting type |
LC—B Stainless steel type |
LC—E Cast steel type |
|
|
NominalpressureMPa |
1.6 |
1.6、2.5、4.0、6.3 |
1.6、2.5、4.0、6.3 |
|
|
Temperature range ℃ |
Conventional pointer type: -20~+80；High-temperature pointer type: -20~+200； Conventional LCD type: -20~+60；High-temperature LCD type: -20~+150； |
|||
|
Precision level |
0.2% |
|||
|
Flow range m3/h |
||||
|
Caliber (mm) |
0.6—2 mPa.s |
2—200 mPa.s |
||
|
10 |
|
0.2—0.4 m3/h |
||
|
15 |
|
0.5—1.5 m3/h |
||
|
20 |
1.5—3 m3/h |
1—3 m3/h |
||
|
25 |
3—6 m3/h |
1.2—6 m3/h |
||
|
40 |
8—15 m3/h |
5—15 m3/h |
||
|
50 |
12—24 m3/h |
8—24 m3/h |
||
|
65 |
20—40 m3/h |
10—40 m3/h |
||
|
80 (light type) |
20—40 m3/h |
10—40 m3/h |
||
|
80 (heavy type) |
30—60 m3/h |
15—60 m3/h |
||
|
100 |
40—100 m3/h |
20—100 m3/h |
||
|
150 |
90—190 m3/h |
56—190 m3/h |
||
|
200 |
170—340 m3/h |
m3/h |
||
High-precision and high-viscosity oval gear flowmeter (precision: 0.2%)
|
M TR |
LC—NA High-viscosity iron casting type |
LC—NE High-viscosity cast steel type |
LC-NB High-viscosity stainless steel type |
|
|
NominalpressureMPa |
1.6 |
1.6, 2.5, 4.0, 6.3 |
1.6, 2.5, 4.0, 6.3 |
|
|
Temperature range ℃ |
Conventional pointer type: -20~+80; High-temperature pointer type: -20~+200; Conventional LCD type: -20~+60; High-temperature LCD type: -20~+150; |
|||
|
Precision grade |
0.2% |
|||
|
Flow range m3/h |
||||
|
Caliber (mm) |
Viscosity: 200—1000mPa.s |
Viscosity: 1000-2000mPa.s |
||
|
10 |
0.08—0.3 m3/h |
0.06-0.2 m3/h |
||
|
15 |
0.3—1.0 m3/h |
0.2-0.7 m3/h |
||
|
20 |
0.6—2.1 m3/h |
0.5-1.5 m3/h |
||
|
25 |
1-4.2 m3/h |
0.8-3 m3/h |
||
|
40 |
3—10.5 m3/h |
2-7.5 m3/h |
||
|
50 |
4-16.8 m3/h |
3-12 m3/h |
||
|
65 |
8-28 m3/h |
6-20 m3/h |
||
|
80 (light type) |
8-28 m3/h |
6-20 m3/h |
||
|
80 (heavy type) |
10-42 m3/h |
8-30 m3/h |
||
|
100 |
15-70 m3/h |
12-50 m3/h |
||
|
150 |
34-133 m3/h |
30-95 m3/h |
||
|
200 |
56-238 m3/h |
50-170 m3/h |
||
LC-13 Oval Gear Flowmeter
LC-13 oval gear flow transmitter consists of the body and transmitter, by which liquid flow in the pipeline can be converted into flow pulse signal or analog signal output. It can be matched with the display instrument or other secondary instruments and systems of our factory. It is used for remote metering display, automatic control and regulation and recording.
Technical performances
Suitable for all cast iron, cast steel, stainless steel flow transmitters.
Transmitter: MF(4-20mA)，GF(photoelectric pulse)
Allowable working voltage: DC12V, DC24V
Pipeline connection flange: JB/T79~82—1994
Transmission distance: 0-1000M
Electrical performance accuracy: ±1 pulse
Ambient temperature: -10~+60℃
Specification and dispatch parameters
Graph of LC—13 flowmeter
|
Caliber |
Viscosity |
Output signal |
|||
|
Flow range (m3/h) |
Conventional |
Customized |
|||
|
2~200mpa.s |
Coefficient (L/P) |
Frequency (P/S) |
Coefficient (L/P) |
Frequency (P/S) |
|
|
10 |
0.08~0.4 |
0.00171 |
81.22 |
0.000285 |
487.32 |
|
15 |
0.3~1.5 |
0.00598 |
69.62 |
0.000996 |
417.72 |
|
20 |
0.6~3 |
0.01217 |
68.44 |
0.00202 |
410.64 |
|
25 |
0.8~6 |
0.01193 |
140 |
0.00198 |
840 |
|
40 |
3-15 |
0.03084 |
135 |
0.00514 |
810 |
|
Note |
Additional caliber parameters are to be determined |
||||
Transmitter
The transmitter is a high precision pulse sensor, which is matched with LC SERIES OVAL GEAR FLOWMETER. The flow rate of the measured medium can be converted into an electrical pulse signal for remote transmission.
Transmitter Counter Transmitting block Wiring Transmitting plate
1.Technical parameters
Working voltage: DC12/24V
Transmission distance:0-1000M
Electrical performance accuracy: ±1 pulse
Ambient temperature:-10~+65℃
Explosion-proof grade: ExdⅡBT4
2.Wiring diagram of transmitter
3.Matching pulse equivalent between transmitter and LC Series Oval Gear Flowmeter
|
DN |
A1/J1 counter |
|
|
L/P |
P/S |
|
|
10 |
0.004 |
27.77 |
|
15 |
0.04 |
10.41 |
|
20 |
0.04 |
20.83 |
|
25 |
0.04 |
41.67 |
|
40 |
0.4 |
10.41 |
|
50 |
0.4 |
16.67 |
|
65/80 (light type) |
0.4 |
27.77 |
|
80 (heavy type) |
0.4 |
41.67 |
|
100 |
0.4 |
69.44 |
|
150 |
0.4 |
52.78 |
|
200 |
0.4 |
94.44 |
|
Function |
Terminal name |
Wiring mode |
|
Two-wire 4-20mA output |
V+ |
24V positive power supply |
|
GND |
Two-wire 4-20mA positive end |
|
|
Three-wire 4-20mA output |
V+ |
24V positive power supply |
|
I+ |
4-20mA Current output positive |
|
|
GND |
4-20mA Current output negative, 24V Negative power supply |
Dimensions
DN10~DN50 (light type)
DN50 (heavy type)~DN100
DN65/DN80 （light type）
DN150~DN200
Physical dimensions of oval gear flowmeter of iron casting type
Model: LC—A, LC—NA（High temperature type: DN50 light and below B plus 100mm, DN50 heavy and above B plus 160mm）
|
DN(mm) |
L(mm) |
H(mm) |
B(mm) |
C(mm) |
I(mm) |
D(mm) |
D1(mm) |
N |
Ф(mm) |
|
10 |
150 |
100 |
210 |
120 |
45 |
90 |
60 |
4 |
14 |
|
15 |
170 |
118 |
226 |
136 |
48 |
95 |
65 |
4 |
14 |
|
20 |
200 |
150 |
238 |
148 |
53 |
105 |
75 |
4 |
14 |
|
25 |
260 |
180 |
246 |
156 |
60 |
115 |
85 |
4 |
14 |
|
40 |
245 |
180 |
271 |
181 |
77 |
145 |
110 |
4 |
18 |
|
50 (light type) |
290 |
218 |
310 |
220 |
80 |
160 |
125 |
4 |
18 |
|
50 (heavy type) |
340 |
250 |
372 |
230 |
88 |
160 |
125 |
4 |
18 |
|
65 |
325 |
245 |
320 |
220 |
90 |
180 |
145 |
4 |
18 |
|
80 (light type) |
325 |
245 |
320 |
220 |
90 |
195 |
160 |
8 |
18 |
|
80 (heavy type) |
420 |
325 |
433 |
253 |
118 |
195 |
160 |
8 |
18 |
|
100 |
515 |
418 |
458 |
278 |
131 |
215 |
180 |
8 |
18 |
|
150 |
540 |
515 |
557 |
377 |
210 |
280 |
240 |
8 |
23 |
|
200 |
650 |
650 |
624 |
444 |
247 |
335 |
295 |
12 |
23 |
Physical dimensions of cast steel type
Model: LC—E, LC—NE；（High temperature type: DN50 light and below B plus 100mm, DN50 heavy and above B plus 160mm）
|
DN(mm) |
L(mm) |
H(mm) |
B(mm) |
C(mm) |
I(mm) |
D(mm) |
D1(mm) |
N |
Ф(mm) |
|
10 |
150 |
100 |
212 |
120 |
45 |
90 |
60 |
4 |
14 |
|
15 |
200 |
138 |
232 |
142 |
53 |
95 |
65 |
4 |
14 |
|
20 |
250 |
164 |
250 |
150 |
63 |
105 |
75 |
4 |
14 |
|
25 |
300 |
202 |
252 |
162 |
68 |
115 |
85 |
4 |
14 |
|
40 |
300 |
202 |
293 |
203 |
83 |
150 |
110 |
4 |
18 |
|
50 (light type) |
320 |
220 |
325 |
235 |
85 |
160 |
125 |
4 |
18 |
|
50 (heavy type) |
384 |
262 |
394 |
394 |
88 |
160 |
125 |
4 |
18 |
|
65 |
350 |
260 |
365 |
275 |
100 |
180 |
145 |
4 |
18 |
|
80 (light type) |
350 |
260 |
365 |
275 |
100 |
200 |
160 |
8 |
18 |
|
80 (heavy type) |
450 |
337 |
452 |
272 |
118 |
200 |
160 |
8 |
18 |
|
100 |
555 |
442 |
478 |
298 |
131 |
220 |
180 |
8 |
18 |
|
150 |
540 |
510 |
557 |
377 |
210 |
285 |
240 |
8 |
23 |
|
200 |
650 |
650 |
624 |
436 |
247 |
340 |
295 |
12 |
23 |
* Flange dimensions is 1.6 MPA standard; (length and Flange dimensions can be customized)
Physical dimensions of LC—B stainless steel oval gear flowmeter (unit: mm)（High temperature type: DN50 light and below B plus 100mm, DN50 heavy and above B plus 160mm）
|
DN(mm) |
L(mm) |
H(mm) |
B(mm) |
C(mm) |
I(mm) |
D(mm) |
D1(mm) |
N |
Ф(mm) |
|
10 |
150 |
100 |
212 |
120 |
45 |
90 |
60 |
4 |
14 |
|
15 |
200 |
120 |
226 |
132 |
48 |
95 |
65 |
4 |
14 |
|
20 |
230 |
150 |
238 |
148 |
58 |
105 |
75 |
4 |
14 |
|
25 |
260 |
180 |
246 |
156 |
64 |
115 |
85 |
4 |
14 |
|
40 |
265 |
180 |
271 |
181 |
77 |
150 |
110 |
4 |
18 |
|
50 |
265 |
180 |
290 |
200 |
92 |
160 |
125 |
4 |
18 |
|
65 |
365 |
260 |
400 |
310 |
125 |
180 |
145 |
4 |
18 |
|
80 (light type) |
350 |
260 |
365 |
275 |
125 |
200 |
160 |
8 |
18 |
|
80 (heavy type) |
420 |
325 |
443 |
263 |
118 |
200 |
160 |
8 |
18 |
|
100 |
515 |
418 |
468 |
288 |
131 |
220 |
180 |
8 |
18 |
Models and Identifications
|
Type code |
— |
Specia l mark |
Material mark |
Diam eter |
Press ure |
/ |
Counter |
Trans mitter |
Description |
|
LC |
— |
|
|
|
|
|
|
|
Oval gear flowmeter |
|
|
T |
|
|
|
|
|
|
High temperature type |
|
|
U |
|
|
|
|
|
|
Jacket type |
||
|
N |
|
|
|
|
|
|
High viscosity type |
||
|
|
A |
|
|
|
|
|
Iron casting type |
||
|
|
E |
|
|
|
|
|
Cast steel type |
||
|
|
B |
|
|
|
|
|
304 Stainless steel type |
||
|
|
C |
|
|
|
|
|
316 Stainless steel type |
||
|
|
10 ..... 40 ..... 200 |
|
|
|
|
Nominal diameter: DN=10mm Nominal diameter: DN=40mm Nominal diameter: DN=200mm |
|||
|
|
.1 |
|
|
|
Nominal pressure (1.0Mpa) |
||||
|
.2 |
|
|
|
Nominal pressure (1.6Mpa) |
|||||
|
.3 |
|
|
|
Nominal pressure (2.5MPa) |
|||||
|
.4 |
|
|
|
Nominal pressure (4.0MPa) |
|||||
|
.6 |
|
|
|
Nominal pressure (6.3MPa) |
|||||
|
|
A/A1 |
|
DN50 (light type) with mechanical pointer display; A1 may be equipped with transmitter |
||||||
|
J1 |
|
DN50 (heavy) with mechanical p display; It may be equipped with transmitter; |
|||||||
|
A5/A6 |
|
A5 Single pointer wheel display, A6 point reset may be equipped with transmitter |
|||||||
|
Z |
|
Double-handle reset |
|||||||
|
13 |
|
Output signal only (pulse, 4-20mA) |
|||||||
|
ELZ （BELZ） |
|
LCD (-1 output pulse; -2 output 4-20mA;-3 output RS485) |
|||||||
|
|
GF-I |
3-wire pulse (clockwise ) |
|||||||
|
GF-II |
3-wire pulse (anticlockwise ) |
||||||||
|
MF |
4—20mA analogue (-1 two-wire system; -2 three-wire system) |
||||||||
Hot Tags: oval gear flowmeter for diesel oil, China oval gear flowmeter for diesel oil manufacturers, suppliers, Oval Gear Flowmeter, Oval Gear Flowmeter for Diesel Oil
