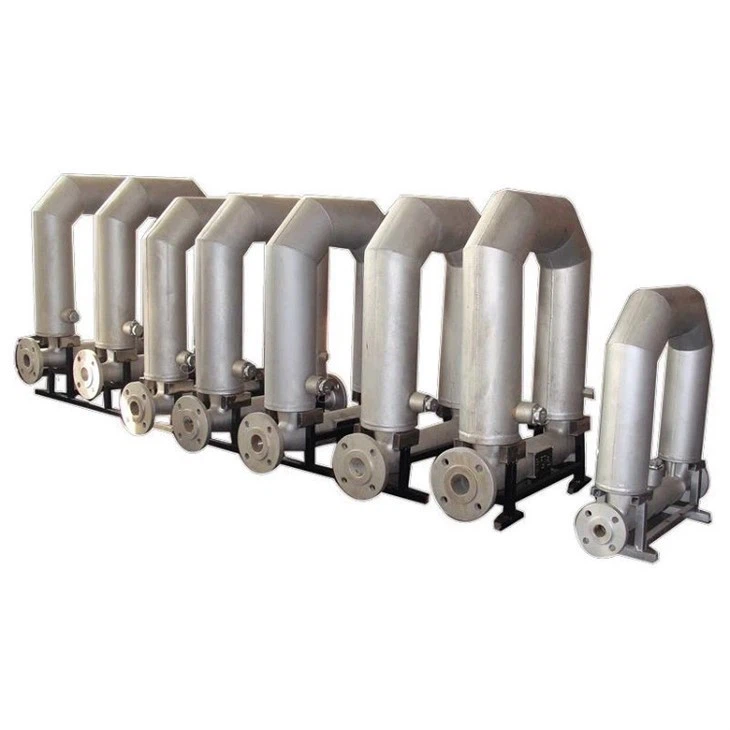

HYCMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. HYCMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.

Features

■Unchallengeable HYCMF performance on liquid mass flow, volume flow, and density measurement
■Unique design delivers unparalleled measurement sensitivity and stability
■Guarantees consistent, reliable performance over the widest flow range, Designed to minimize process, mounting, and environmental effect

Applications

Low Flow Precision Measurement

Precision Measurement &

Process Control

High Capacity Precision

Measurement

Starting at 9.6kg/hr to120kg/hr

Flavoring

Vials

Chemical injection

Kg/min – tons/hr

Truck loading

Internal allocation

Leak detection

Produced fluids with chlorides

Up to 1,000 tons/hr

Custody transfer

Ship loading

Railcar loading

Pipeline measurement

Marine bunkering

Feedstock and fuel blending

product-619-374

Liquid Flowrate

Model	Nominal Size (mm)	Flow rate (kg/hr)	Stability zero, kg/h			Rated Pressure (MPa)	NW (KG)	GW (KG)
Model	Nominal Size (mm)	Flow rate (kg/hr)	0.2%	0.15%	0.1%	Rated Pressure (MPa)	NW (KG)	GW (KG)
HYCMF-003	3	0~96~120	0.018	0.012	0.012	40	8	19
HYCMF-006	6	0~540~660	0.099	0.066	0.066	20	12	22
HYCMF-008	8	0~960~1200	0.18	0.12	0.12	20	12	23
HYCMF-010	10	0~1500~1800	0.27	0.18	0.18	20	11	24
HYCMF-015	15	0~3000~4200	0.63	0.42	0.42	20	12	25
HYCMF-020	20	0~6000~7800	1.17	0.78	0.78	16	20	34
HYCMF-025	25	0~10200~13500	2.025	1.35	1.35	16	21	35
HYCMF-032	32	0~18 000~24 000	3.6	2.4	2.4	16	27	45
HYCMF-040	40	0~30 000~36 000	5.4	3.6	3.6	12	35	55
HYCMF-050	50	0~48 000~60 000	9	6	6	12	40	60
HYCMF-080	80	0~120 000~160 000	24	16	16	8	90	150
HYCMF-100	100	0~222 000~270 000	40.5	27	27	8	170	245
HYCMF-150	150	0~480 000~600 000	90	60	60	6	255	360

Sensor Specifications

■Accuracy: ±0.1~0.5%

■Repeatability: ±0.1~0.25%

■Density measurement range: 0.5~2g/cm3, Accuracy: ±0.002 g/cm3

■Operating temperature: -50~+200℃(standard), -200~+300℃

■Ambient temperature: -20~+60℃ or -40~+60℃

■The measuring tube material: SS316L; The housing material SS304

■Nominal pressure: 4.0MPa (standard)

■Exd (ia)ⅡC T6Gb

Transmitter Specifications

Item	FT-521 LED	FT-522 LCD	FT-523 digital LCD
Principle	Analog signal processing	Analog signal processing	Digital signal processing 1.MVD technology 2.Higher sampling
Medium temperature	-200~+300℃	-200~+300℃	-200~+200℃
Ambient temperature	-40~60℃	-20~60℃	-20~60℃
Display info	Mass flow; Volume flow, Density	Mass flow; Volume flow, Density	Mass flow; Volume flow, Density, Temperature
Display mode	LED	LCD	LCD
Power supply	24VDC/220VAC	24VDC/220VAC	22VDC~245VAC
Output signal	Pulse/4-20mA	Pulse/4-20mA	Pulse/4-20mA
Communication	Modbus	Modbus / Hart	Modbus / Hart
Ex-proof	Ex d (ia) ⅡC T6Gb	Ex d (ia) ⅡC T6Gb	Ex d ib IIC T6 Gb

Dimension

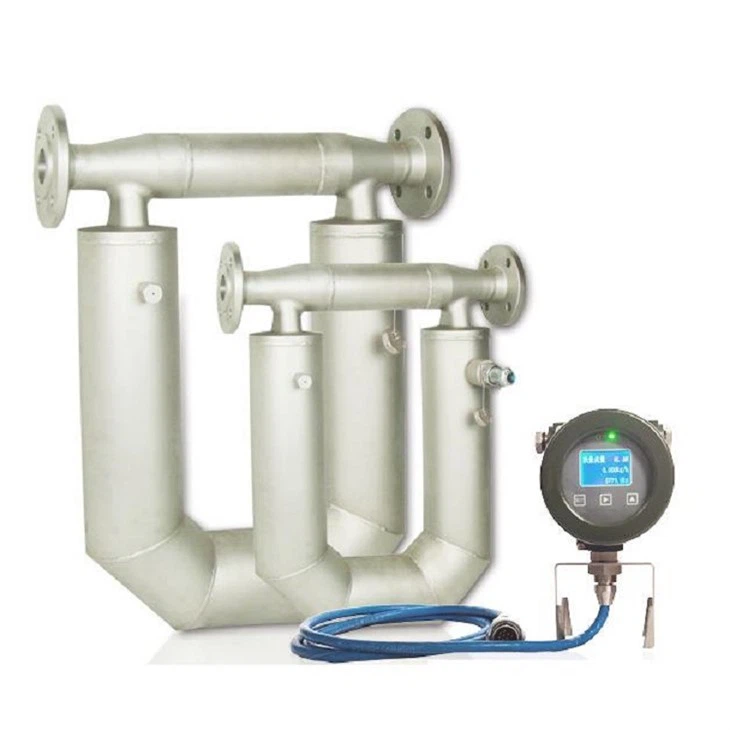

“U”type - Compact type

product-526-546

Model	A	B	C	D	NW(Sensor)
Model	mm	mm	mm	mm	kg
HYCMF-010	450	590	380	60	7.2
HYCMF-015	456	590	380	60	7.5
HYCMF-020	540	750	468	108	17
HYCMF-025	540	770	468	108	17.5
HYCMF-032	545	810	468	108	24
HYCMF-040	600	930	500	140	32
HYCMF-050	606	955	500	140	36
HYCMF-080	866	1177	780	220	87.5
HYCMF-100	950	1335	833	273	165
HYCMF-150	1300	1593	1144	324	252
HYCMF-200	1300	1600	1144	400	350

“U”type - Remote type

product-520-410

Model	A	B	C	D	NW(Sensor)
Model	mm	mm	mm	mm	kg
HYCMF-010	450	370	380	60	7.2
HYCMF-015	456	370	380	60	7.5
HYCMF-020	540	530	468	108	17
HYCMF-025	540	550	468	108	17.5
HYCMF-032	545	590	468	108	24
HYCMF-040	600	710	500	140	32
HYCMF-050	606	735	500	140	36
HYCMF-080	866	957	780	220	87.5
HYCMF-100	950	1115	833	273	165
HYCMF-150	1300	1373	1144	324	252
HYCMF-200	1300	1380	1144	400	350

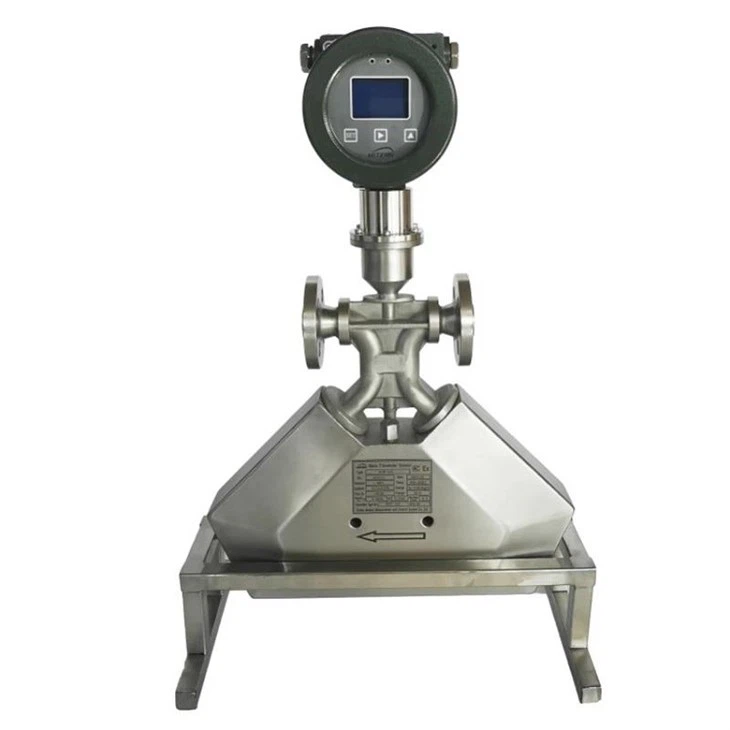

Triangle type

Compact type HY-CMF015 / 010

Compact type HY-CMF008 / 006 / 003

Model	A	B	C	D	NW(Sensor)
Model	mm	mm	mm	mm	kg
HYCMF-003	178	420	250	54	4.8
HYCMF-006	232	550	360	70.5	8.1
HYCMF-008	232	565	395	70.5	8.2
HYCMF-010	95	525	370	70.5	6.5
HYCMF-015	95	540	405	70.5	6.5

Remote type HY-CMF015 / 010

Remote type HY-CMF008 / 006 / 003

Model	A	B	C	D	NW(Sensor)
Model	mm	mm	mm	mm	kg
HYCMF-003	178	290	250	54	4.8
HYCMF-006	232	420	360	70.5	8.1
HYCMF-008	232	435	395	70.5	8.2
HYCMF-010	95	395	370	70.5	6.5
HYCMF-015	95	410	405	70.5	6.5

Order Selection

Model

Description

HY-CMF-

Diameter

003

DN3

006

DN6

008

DN8

010

DN10

015

DN15

020

DN20

025

DN25

032

DN32

040

DN40

050

DN50

080

DN80

100

DN100

150

DN150

Structure

Compact type

Remote type

Medium temperature

-50…+200℃

-50…+300℃

-200…+200℃

Rated pressure

Reference to the remark

Customized

Power supply

DC24V

AC220V

Output signal

Pulse output

4-20mA output

Communication

RS485

HART

Accuracy

0.1

0.1%

0.15

0.15%

0.2

0.2%

0.5

0.5%

Connection

Flange

Thread

Tri-clamp

Pipe fittings

Explosion

Exd(ia)IICT6Gb

Safe environment

Others

Customized

Remark: the rated pressure for each diameter is shown as below, unit: MPa

Please select N if the rated pressure for each diameter is within the related pressure.

Diameter	DN3	DN6	DN8	DN10	DN15	DN20	DN25	DN32	DN40	DN50	DN80	DN100	DN150
Pressure	40	20	20	20	20	16	16	16	12	12	8	8	6
