As a supplier of ultrasonic flowmeters, I've had the chance to see firsthand how these nifty devices work. One of the most crucial parts of an ultrasonic flowmeter is the transducer. So, what exactly is the role of the transducer in an ultrasonic flowmeter? Let's dive in and find out.
What's a Transducer Anyway?
Before we get into its role, let's quickly understand what a transducer is. In simple terms, a transducer is a device that converts one form of energy into another. In the case of an ultrasonic flowmeter, the transducer converts electrical energy into ultrasonic waves and vice versa.
How Ultrasonic Flowmeters Work
To understand the role of the transducer, we first need to know how an ultrasonic flowmeter works. There are two main types of ultrasonic flowmeters: transit-time and Doppler. I'll focus on the transit - time type here as it's more common.
In a transit - time ultrasonic flowmeter, two transducers are usually installed on the outside of a pipe. One transducer acts as a transmitter, sending ultrasonic waves through the fluid flowing in the pipe. The other transducer acts as a receiver, picking up these waves.
The time it takes for the ultrasonic waves to travel from the transmitter to the receiver depends on the direction of the fluid flow. When the waves travel in the same direction as the fluid flow, they move faster. When they travel against the fluid flow, they move slower. By measuring this difference in transit times, the flowmeter can calculate the velocity of the fluid.
The Role of the Transducer
Transmitting Ultrasonic Waves
The first and most obvious role of the transducer is to transmit ultrasonic waves. When an electrical signal is applied to the transducer, it vibrates at a high frequency, typically in the ultrasonic range (above 20 kHz). This vibration generates ultrasonic waves that are sent into the fluid.
The quality of the transmitted waves is crucial. The transducer needs to produce waves with a consistent frequency and amplitude. Any variations in these parameters can lead to inaccurate flow measurements. That's why we, as suppliers, pay close attention to the design and manufacturing of transducers to ensure they meet high - quality standards.
Receiving Ultrasonic Waves
Once the ultrasonic waves have traveled through the fluid, the other transducer receives them. The received waves are then converted back into an electrical signal. This electrical signal contains information about the transit time of the waves, which is used by the flowmeter's electronics to calculate the fluid flow velocity.
The receiving transducer needs to be highly sensitive to detect the ultrasonic waves accurately. Even small changes in the received signal can affect the flow measurement. So, we make sure that our transducers are designed to have excellent sensitivity and signal - to - noise ratios.
Signal Processing
The transducers also play a role in signal processing. The electrical signals generated by the transducers are not in a form that can be directly used to calculate the flow rate. They need to be amplified, filtered, and processed.
The transducers are designed to work in harmony with the flowmeter's signal - processing electronics. They provide the necessary input signals that the electronics can work with. For example, the transducer's output impedance needs to match the input impedance of the signal - processing circuit to ensure efficient signal transfer.
Different Types of Transducers in Ultrasonic Flowmeters
There are different types of transducers used in ultrasonic flowmeters, each with its own advantages and applications.
Clamp - on Transducers
Clamp - on transducers are very popular because they can be easily installed on the outside of a pipe without cutting or drilling the pipe. This makes them ideal for applications where it's difficult or expensive to install in - line flowmeters.
These transducers use the principle of acoustic coupling to transmit and receive ultrasonic waves through the pipe wall. They are suitable for a wide range of pipe sizes and fluid types. If you're looking for a non - invasive way to measure fluid flow, Portable Ultrasonic Flowmeter with clamp - on transducers might be a great option for you.
In - line Transducers
In - line transducers are installed directly in the pipe. They offer higher accuracy compared to clamp - on transducers because they have better acoustic coupling with the fluid. In - line transducers are often used in applications where high - precision flow measurement is required, such as in industrial processes or custody transfer applications.
Applications and the Role of Transducers
The role of the transducer becomes even more important when we consider different applications of ultrasonic flowmeters.
Water Management
In water management applications, such as Ultrasonic Water Meter, accurate flow measurement is crucial for billing and resource management. The transducers in these flowmeters need to be reliable and accurate over a long period of time. They should be able to withstand the effects of water, such as corrosion and scale buildup.
River Flow Measurement

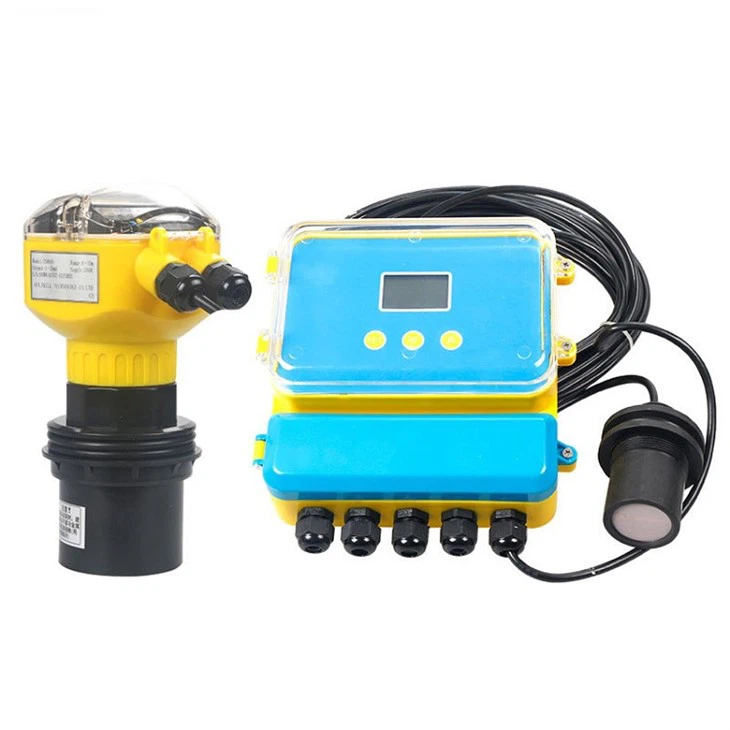

For River Flow Meter, the transducers need to be designed to work in harsh outdoor environments. They need to be waterproof, resistant to debris, and able to handle large variations in flow velocity. The quality of the transducers directly affects the accuracy of the river flow measurement, which is important for flood control, water resource planning, and environmental monitoring.
Conclusion
In conclusion, the transducer is the heart of an ultrasonic flowmeter. It plays a vital role in transmitting and receiving ultrasonic waves, as well as in signal processing. The performance of the transducer directly affects the accuracy and reliability of the flowmeter.
Whether you're in the water management industry, need to measure river flow, or are looking for a portable solution for industrial applications, having high - quality transducers in your ultrasonic flowmeter is essential.
If you're interested in purchasing ultrasonic flowmeters or have any questions about our products, feel free to reach out to us. We're here to help you find the best solution for your flow measurement needs.
