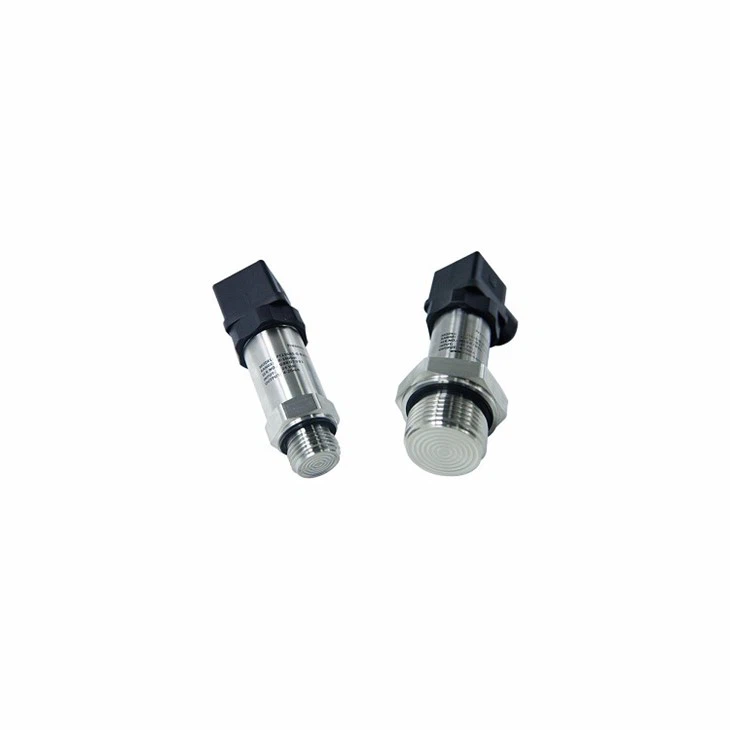

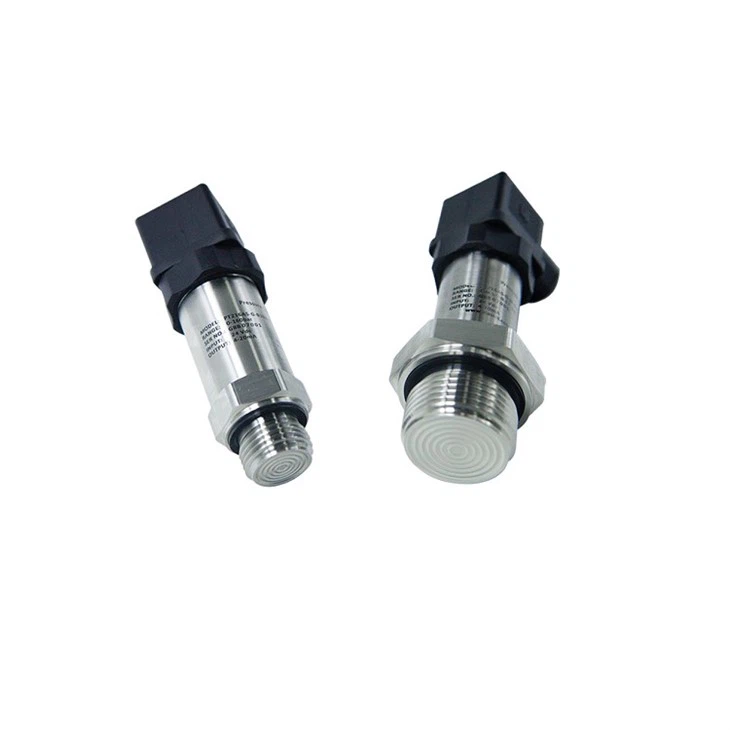

Features

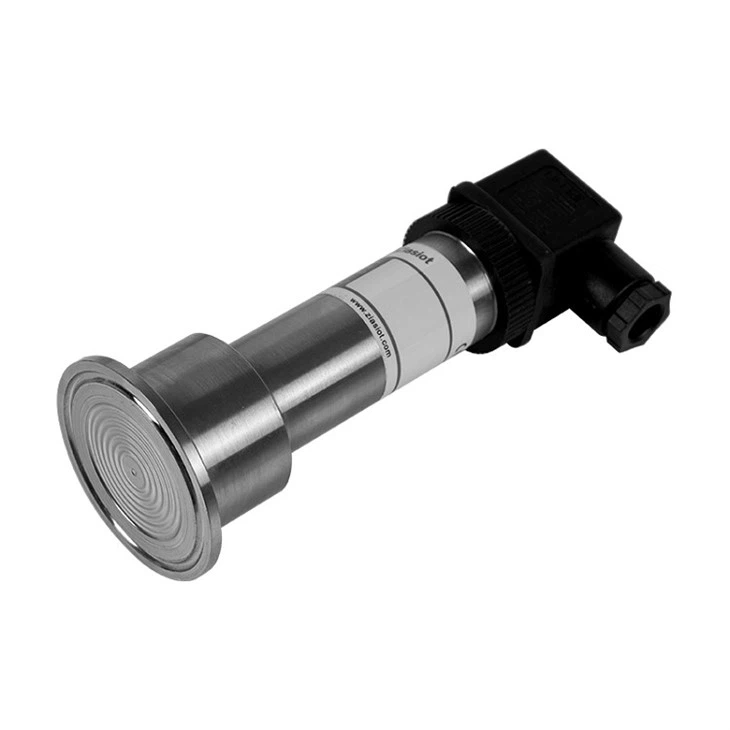

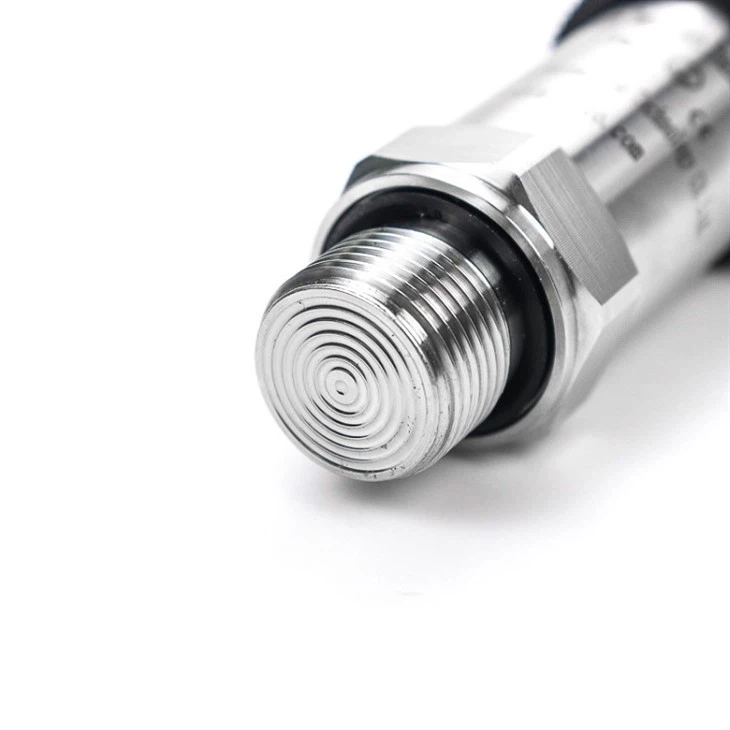

■The pressure connection adopts 316L flat diaphragm structure
■Sanitary type, anti-scaling
■Wide pressure range, can measure the absolute pressure, gauge pressure and sealed pressure
■Well sealed, can ensure long-term stable work
■With the cooling fan design, excellent high temperature medium application performance
■Optional multiple kinds of output signals, can be customized according to the customer’s requirements
Applications and industries
■Medicine and health, food, wine-making, milk, beverage and other viscous and easily plugged situations with high sanitary and convenient cleaning requirements
■Environmentally friendly chemical industry coating, polyurethane equipment, paint inspection system etc.
Performance parameters
|
Pressure range |
-100kPa…0~35kPa…100MPa |
|
Pressure reference |
Gauge pressure, Absolute pressure, Sealed gauge pressure |
| Supply & output |
4～20mA(12～30VDC) 0～5V, 1～5V, 0～10V (12～24VDC) |
|
Accuracy |
0.5%FS |
|
Hysteresis and repeatability |
0.1%FS |
|
Temperature drift |
1.5%FS(@-20℃～85℃) |
|
Performance parameters (cont.) |
|
|
Response time |
≤1ms (Up to 90%FS) |
|
Service life |
≥10×106 pressure cycles |
|
Operating temp. |
-20℃～85℃ |
|
Medium temp. |
-40℃～85℃ (without cooling fan) -40℃～150℃ (three cooling fans), -40℃～250℃ (five cooling fans) |
|
Storage temp. |
-40℃～85℃ |
|
Insulation resistance |
≥100MΩ/250VDC |
|
Anti-vibration performance |
Sine curve: 20g, 25Hz～2kHz; IEC 60068-2-6 Random: 7.5grms, 5Hz～1kHz; IEC 60068-2-64 |
|
Protection grade |
IP65 |
|
Medium compatibility |
All kinds of media compatible with SS316L |
|
Ex-proof grade |
Intrinsically safe explosion-proof ExiaⅡCT6 |
|
Electrical connection & wiring mode |
||
|
Connector code |
J5: DIN43650 |
J1: 2088 housing |
|
Dimension In mm |
|
|
|
Connection mode (Current output) |
Pin 1: Power supply Pin 2: Current output |
|
|
Electrical connection & wiring mode (cont.) |
||
|
Connection mode (Voltage output) |
Pin 1: Power supply Pin 2: GND Pin 3: Voltage output |
|
|
Clamp size |
||
|
Clamp code |
K1: 2 inch clamp |
K2: 2.5 inch clamp |
|
Dimension In mm |
|
|
|

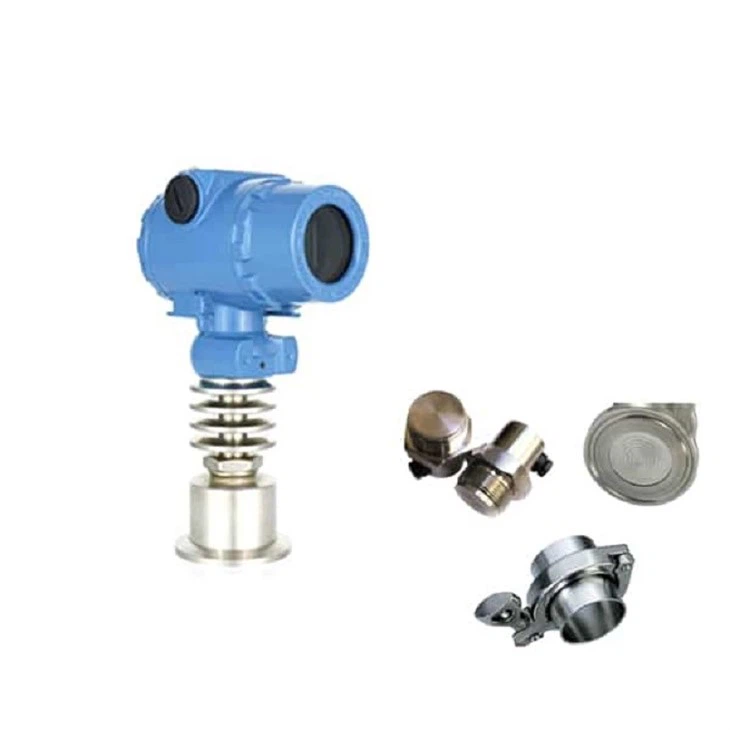

Cooling fan design |
||
|
Cooling fancode |
T3: 3 cooling fans |
T5: 5 cooling fans |
|
Dimension In mm |
|
|
|
Pressure range selection |
|||||
|
Pressure range code |
Pressure reference |
Pressure range |
Overpressure |
Burst pressure |
|
|
10k |
G |
0~10kPa |
300％FS |
500%FS |
|
|
20k |
G |
0~20kPa |
300％FS |
500%FS |
|
|
35k |
G |
0~35kPa |
300％FS |
500%FS |
|
|
70k |
G |
0~70kPa |
300％FS |
500%FS |
|
|
100k |
G, A |
0~100kPa |
200％FS |
300%FS |
|
|
250k |
G |
0~250kPa |
200％FS |
300%FS |
|
|
400k |
G |
0~400kPa |
200％FS |
300%FS |
|
|
600k |
G |
0~600kPa |
200％FS |
300%FS |
|
|
1M |
G |
0~1MPa |
200％FS |
300%FS |
|
|
1.6M |
G, S |
0~1.6MPa |
200％FS |
300%FS |
|
|
2.5M |
G, S |
0~2.5MPa |
200％FS |
300%FS |
|
|
6M |
S |
0~6MPa |
150％FS |
300%FS |
|
|
10M |
S |
0~10MPa |
150％FS |
300%FS |
|
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
| Accessory | |||
|
Name |
Appearance |
Description |
Material No. |
|
Hirschmann plug made in China |
|
Made in China (Used by default) |
100040301005 |
|
Imported Hirschmann plug |
|
Fully imported |
100040301013 |
How to order
Example: HY350K-1.6MGB1K1T3J5
Refer to product model PCM350K, pressure range 0～1.6MPa, pressure reference gauge pressure, output signal 4～20mA, pressure connection 2 inch clamp, 3 cooling fans, electrical connection DIN43650.
